Ecophon Focus™ Edge 500

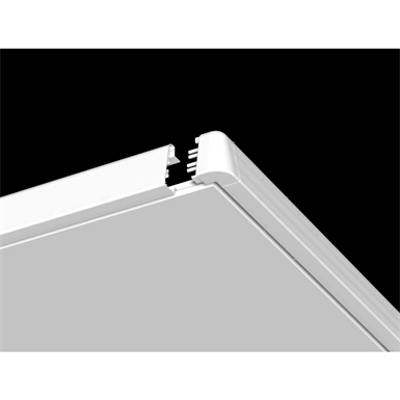

Ecophon Focus Edge™ 500 is a system used as free-hanging unit(s) in applications where the installation of a wall-to-wall ceiling is not possible or desired, but still good sound absorption is needed. Such applications are, for example, over a certain area in a larger room or in case of concrete cooling or ventilation systems that do not allow full coverage of the ceiling. The system consists of Connect Edge 500 Profile, Connect Edge 500 Corner and additional Connect™ accessories, which together form a well designed perimeter trim. The profile is manufactured from extruded aluminium, while the corners are cast zinc. Both have a white 500, structured powder coating to match the Akutex™ FT White Frost surface of the tiles. The Edge™ profiles and Corners can be installed with Ecophon Focus™ Ds, Dg and E systems in rectangles with modular dimensions. Ecophon Focus Edge™ 500 has a design registration (Registered Community Design).

Erittely
Product family: Modular ceilings	Product group: Focus
Main material: Glass wool	Designed in: Sweden
Manufactured in: Sweden	Publishing date: 29.8.2019
Installation instruction	Product certification
Technical description	Product page
Instruction video
