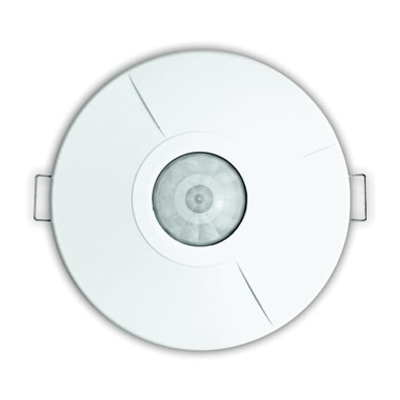

Presence Tech BasicLINE_Busch-Jaeger

For switching lighting systems that depend on brightness and movement. Detection range (for installation height of 3 m), circular, up to 8 m in diameter. For semiautomatic and fully automatic operation. Additional activation/deactivation possibility through pushbutton input. Adaptation of the detection range possible using the included masking elements. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Mounting possibility in combination with built-in installation boxes and device sockets. Ceiling installation using integrated spring bracket. Adjustment elements accessible on the front side. Low mounting height (31 mm) Surveillance density: 32 sectors with 128 switching segments. Switch-off delay: approx. 5 sec - 30 min or short-time pulse adjustable.

Erittely
Product family: Lighting Control	Product group: Lighting controller
Main material: Plastic	Height (mm): 111
Width (mm): 111	Depth (mm): 59
Weight (kg): 0.255	Publishing date: 21.12.2020
